Target planks can be selected with Archicad selection tool before cutting. ArchiFrame cuts the clicked plank. Alternatively, you can draw a line that will cut all planks intersecting that line. Joint type setting Cut from watching direction cuts planks vertically in 2D and at element watching direction if cut from element elevation.

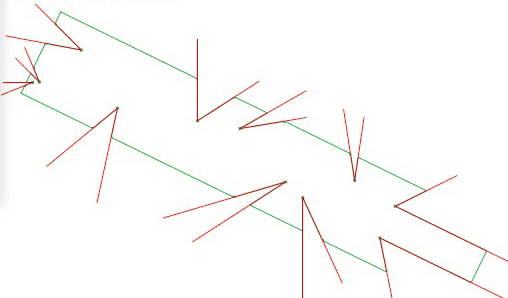

V-Cut with selected lines makes less than 180-degree angle cut according to two connected Archicad lines. Please see this video. Cutting works in floor plan, sections/elevations and in projections.

To join planks the target planks are first selected and then these will combine planks at the same line, combining all machinings.

Press shift if you want to keep small pieces left from the operation. Read more…
